Height: 2700mm Width: 277mm Can be made higher but not wider
26mm Natural Anodised Aluminium Frame
1 triangular pole plus cap and 3 screen to pole connectors.
1 pole plus cap and 3 screen to pole connectors.
1 pole plus cap and 4 screen to pole connectors.
1 pole plus cap and 2 screen to pole connectors.
300mm w x 80mm H
Perspex Screen 3mm, slots onto Powdercoated bracket, which will fit & slot onto existing Cocoon Screens. Perspex Colour – CLEAR 4 x Brackets Included
Aluminium frame available in white (standard), grey and black 2 x Identity panels to fit into the frame Includes Brackets

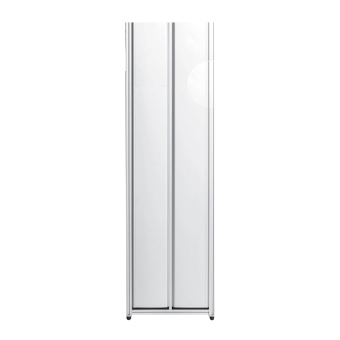

Height: 2700mm Width: 300mm Can be made wider and higher
Back Cover clips open to drop cables down Cable Outlet Intermediate Rail – Below Desk Top height Approximately 700mm
Cable Outlet Below Desk Top height Approximately 700mm Glass Option of Vinyl 26mm Natural Anodised Aluminium Frame Fabric – Client Specification Glass and Reticulated Power Panel Not standard – Client Specification
Perspex Screen 3mm, fixed onto Powdercoated 19mm SQ tube Steel frame with Steel Base Foot, freestanding. Perspex Colour – CLEAR
Opal in Colour Aluminium capping finish Can be used on straight and dual desks Brackets for screens sold seperately Aluminium grey finish 100 x 60 for straight desks
This connector is used in conjunction with the pole to create a 90 degree, 3-way or 4-way junction.
An H piece of aluminium is used to connect desk or floor based screens in a straight line. No pole needed.
Used in conjunction with our big centre extrusion. Bracket allows tops to be suspended and use screens as desk legs.
